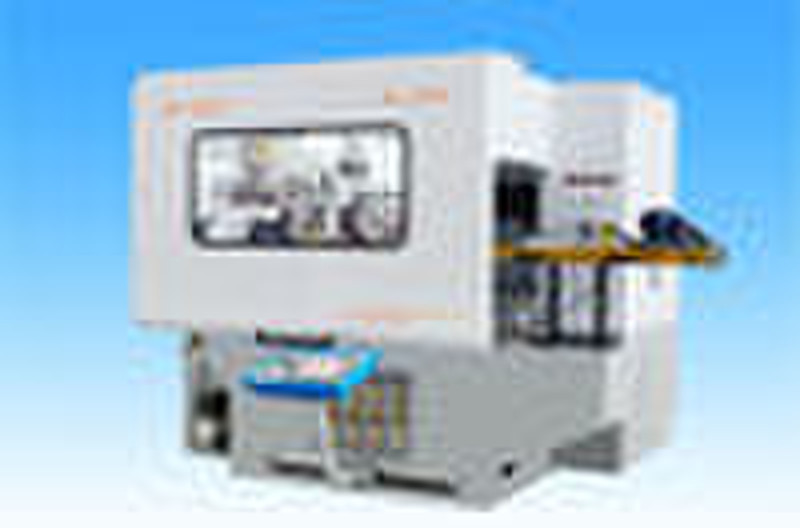

Can Body Welding Machine

Main Feature: 1.Equipped with human-computer-interface and PLC. 2.Adopt digital control technology 3.Auto.trace for copper string driving speed 4.New digital inverter for power supply 5.Full control for every operation steps 6.Radio control available- * Cylinder rolling with Scoring. Speciflcations of the series NEW DODO-400 Full Automatic Body welders TypeNew DODO-400Welding Speed60m/min(max)Output Rate400cans/minWelding points distance0.5-0.9mmOverlap0.25-0.4mmCan diameter202(φ52mm)-401(99mm)Canbody height30-200mmMaterial thickness0.15-0.30mmTin coatingTin:5#-100#TemperT2.5-DR8Copper wire Diameter1.24mm-1.5mmPower supplythree phase, voltage:380V frequency:50Hz, electric comsumption:45kwWelding frequency200-550HzCooling water500kpa,12-18°c, 20L/minCompressed air500kpa,800L/minDimensions2980 X 2370 X 2160mm Main configuration: The machine adopts the new style omRon programable controller (PLC) and communication system from Japan. Use the Japanese Fuji inverter as centralcontrolling parts for the main electronic components; the omRon most advanced NS-TV00B touch screen operation system is adopted as well. And the group technology is used to realize the intelligent control. Chilling system: The machine adopts the internal auto cycling chilling system,equipped with the chiller and water flux pressure protective device. The machine consists of auto can rounding equipments, auto copper wire tracing,calling back and cutting devices; double fingers lateral can conveying table; static digital adjustable frequency inverting power supply devices; vacuum trigger from swiss; and double sheets detecting devices from Keyence,etc. The machine is equipped with inside and outside Nitrogen protective devices, caliber fixer, and calibrating devices. The main electronic components, pneumatic devices and mechanic transmitting equipments are from the international well-known manufacturers, e.g omRon, Fuji, SMC, MAC, Sumitomo Mitsui, SHINOKA,etc. Model NEW DODO-400Welding speed 60m/min.Production capacity400cans/min.Can diameter Φ52mm-Φ99mmCan height 55mm-200mmInput power 65KWWelding frequency 200-550HZ
